3. Roll to Roll Processing Machines
Winding Rewinding machine
Versatile Roll Inspection and Correction
Standard Price
Contact for Quote
Availability
In Stock
Lead Time
4-6 Weeks
Description

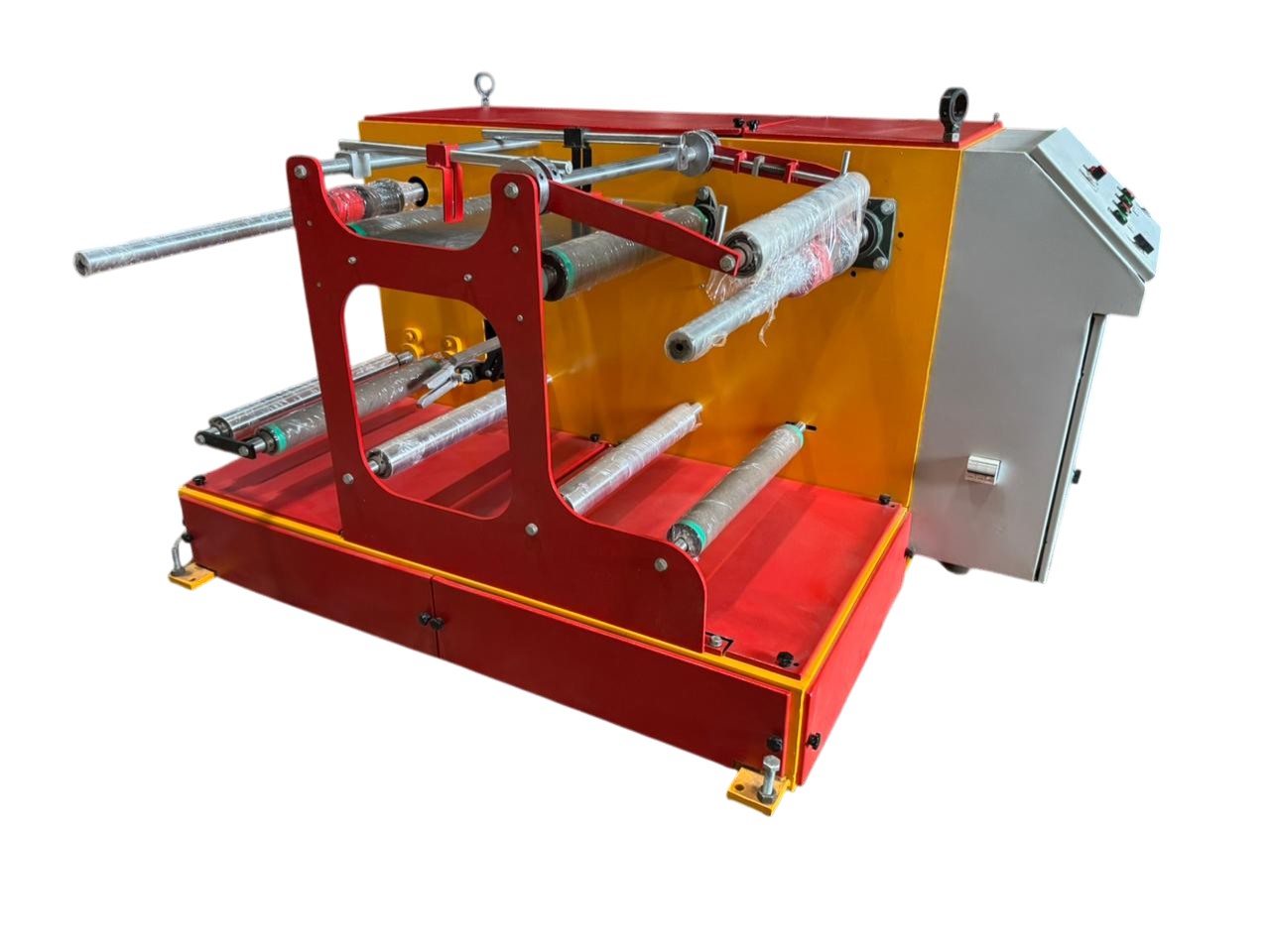

The VIVA Winding Rewinding Machine (also known as a salvage or doctoring machine) is an indispensable tool for quality control and material correction. It allows operators to unwind a defective or poorly wound roll, inspect it, remove defects, and rewind it into a perfect, uniform roll. Designed with bi-directional (reversible) operation, stroboscopic inspection lights, and precision edge guiding, this machine recovers valuable materials that would otherwise be scrapped, offering an immediate return on investment.
High-End Features
Fully reversible bi-directional web drive
Integrated inspection table with stroboscopic lighting
High-precision Edge Position Control (EPC) for straight edges
Adjustable tension control for varying material types
Pre-set digital meter counter with automatic slowdown/stop
Pneumatic air shafts for rapid loading/unloading
Compact monoblock heavy-duty chassis
Technical Specifications
| Web Width | 500mm to 1500mm |
| Max Roll Diameter | 800mm (Unwind/Rewind) |
| Drive System | Reversible AC Vector Drive |
| Operating Speed | Up to 150 m/min |
| Edge Guiding | Photoelectric EPC |
| Core Size | 3 inch / 6 inch options |
| Inspection Area | Backlit / Strobe options |
| Frame | Mild Steel Monoblock |
