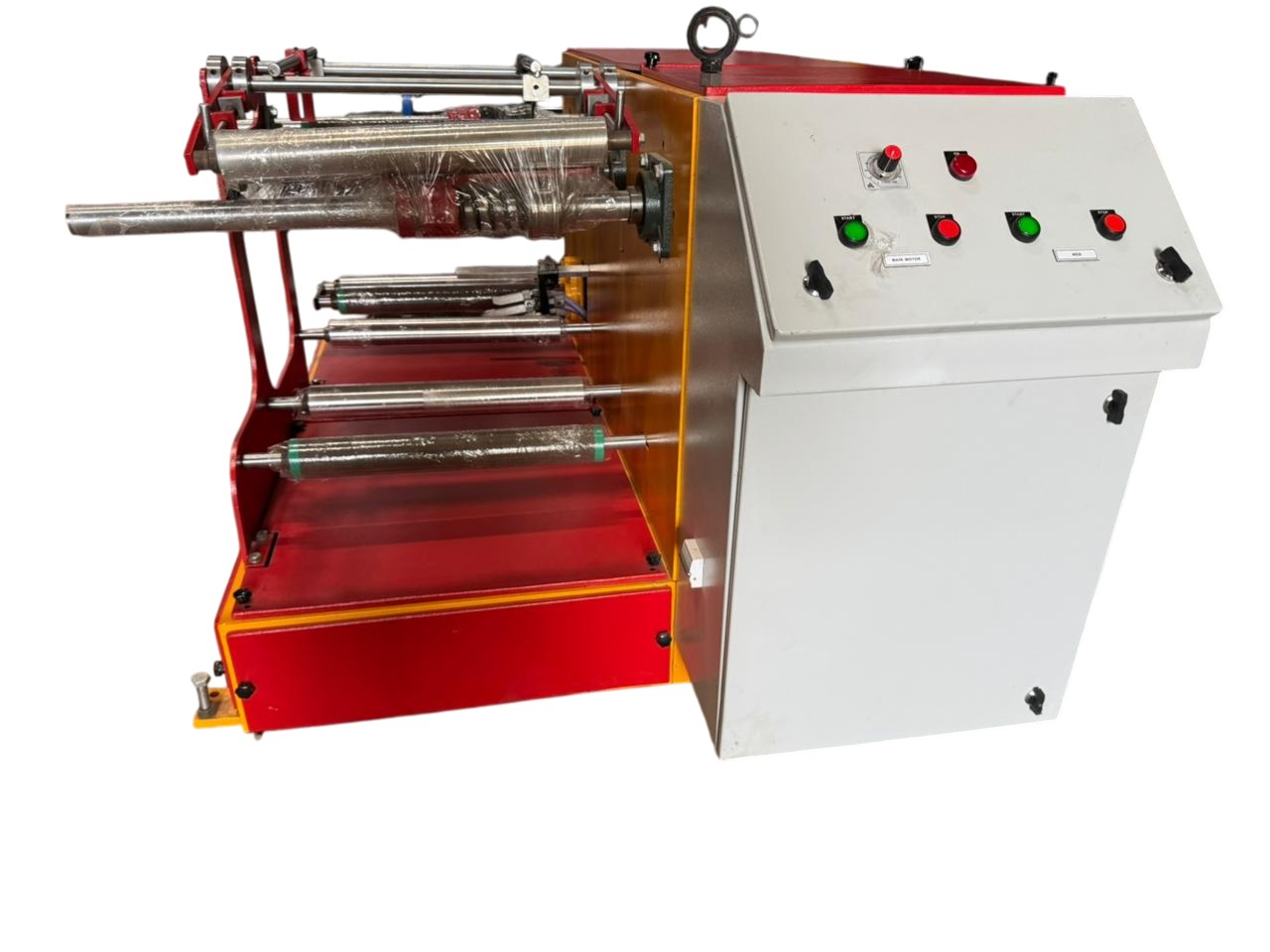

8. Plastic Film Embossing machine
Plastic Film Embossing machine
Decorative & Functional Film Texturing
Standard Price
Contact for Quote
Availability
In Stock
Lead Time
4-6 Weeks
Description
The Plastic Film Embossing Machine imparts physical, three-dimensional textures, patterns, and matte finishes onto otherwise flat plastic films (PE, PP, PVC, and BOPP). This process is crucial for creating anti-slip surfaces, decorative packaging, breathable hygiene films, and faux-leather finishes. The web passes between a laser-engraved steel master roller and a resilient rubber backing roller under immense hydraulic pressure and controlled heat, permanently "pressing" the continuous pattern into the film matrix.
High-End Features
Laser-engraved hardened steel embossing master roller
High-temperature resilient rubber or paper bowl backing roller
Thermic fluid rotary joints for precise roller temperature control
Heavy-duty hydraulic pressure application system (up to 50 Tons)
Pre-heating drums to soften thick substrates before the nip
Chilled cooling drums to rapidly set the embossed pattern
Quick-change roller mechanism for fast pattern changeovers
Technical Specifications
| Web Width | 1000mm to 2000mm |
| Film Thickness | 15 to 300 Microns |
| Embossing Roller | Laser Engraved Steel |
| Backing Roller | Heat-Resistant Silicone / Polyamide |
| Heating Medium | Oil / Thermic Fluid |
| Nip Pressure | Hydraulic (Adjustable 10-50 Tons) |
| Cooling | Chilled Water Drums |
| Speed | Up to 150 m/min |
