Core Cutting Machine
Versatile Core Cutter for Convertors
Standard Price
Contact for Price
Availability
In Stock
Lead Time
4-6 Weeks
Description

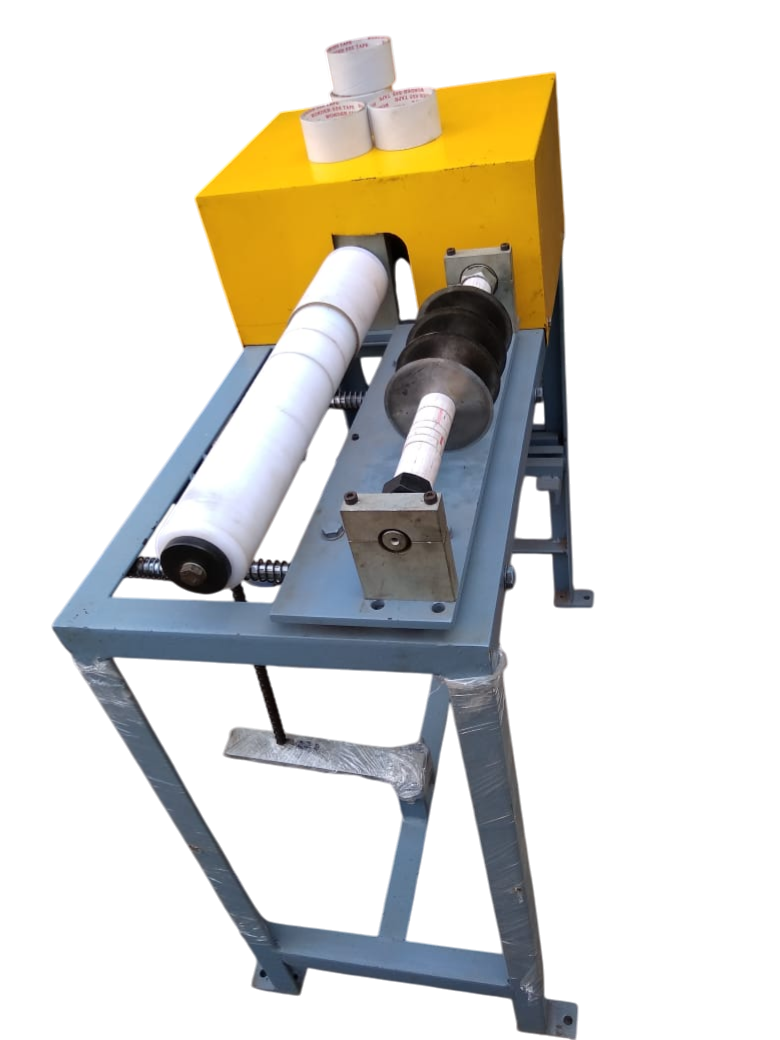

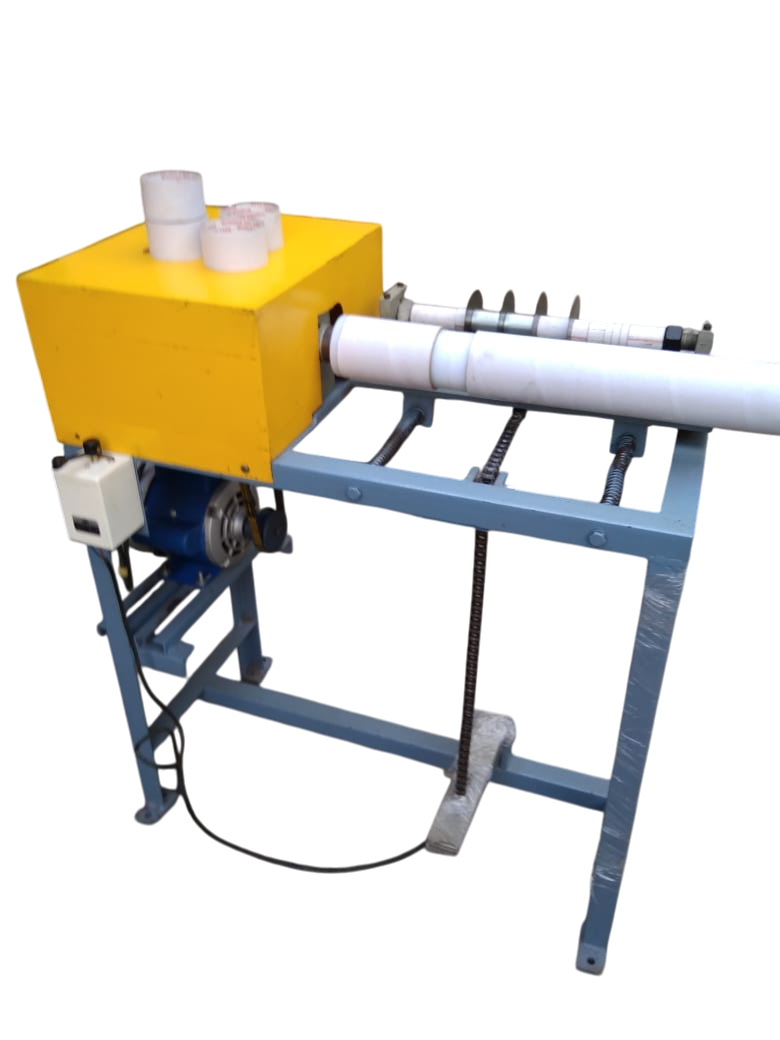

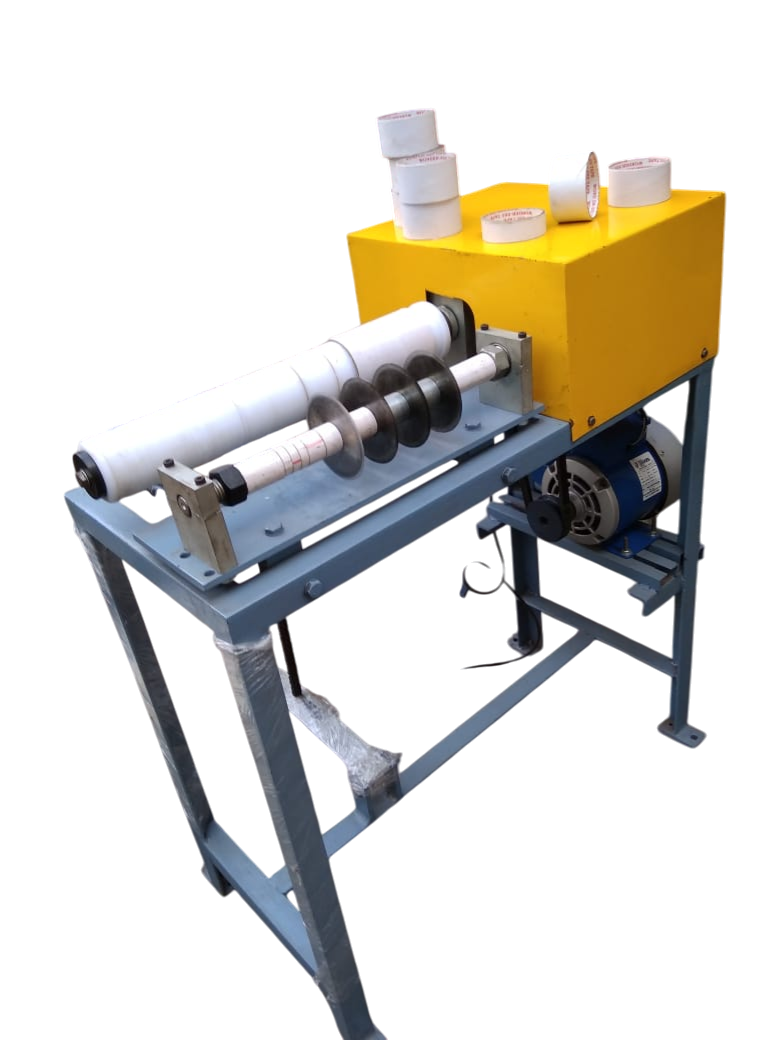

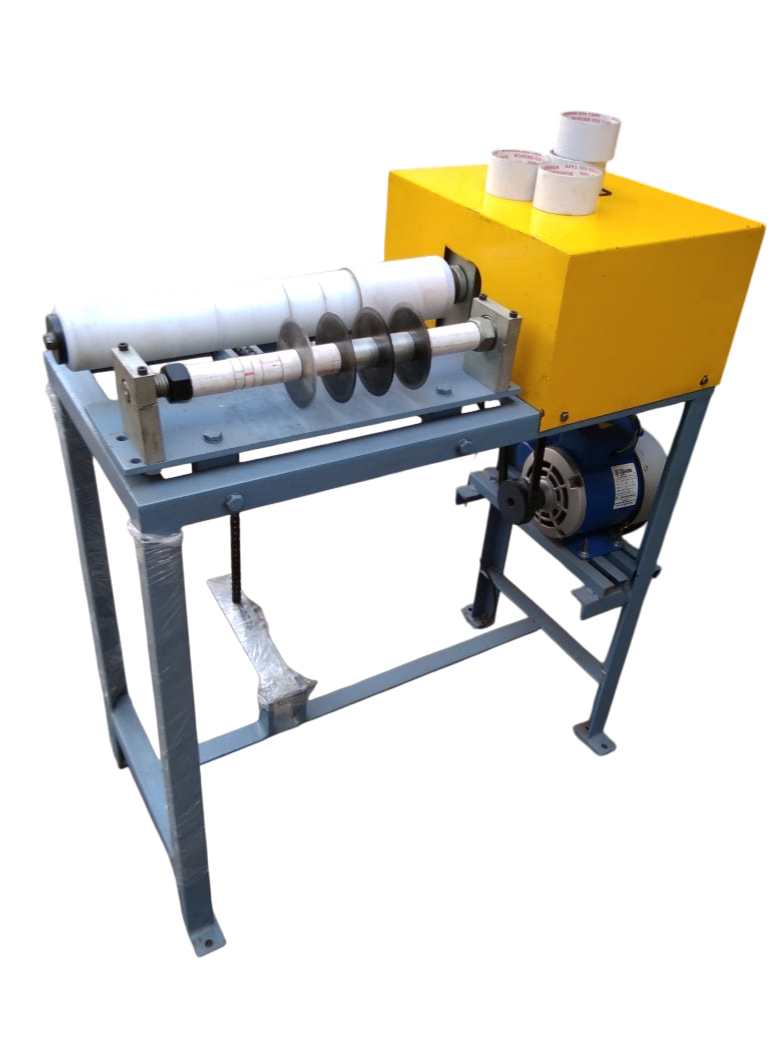

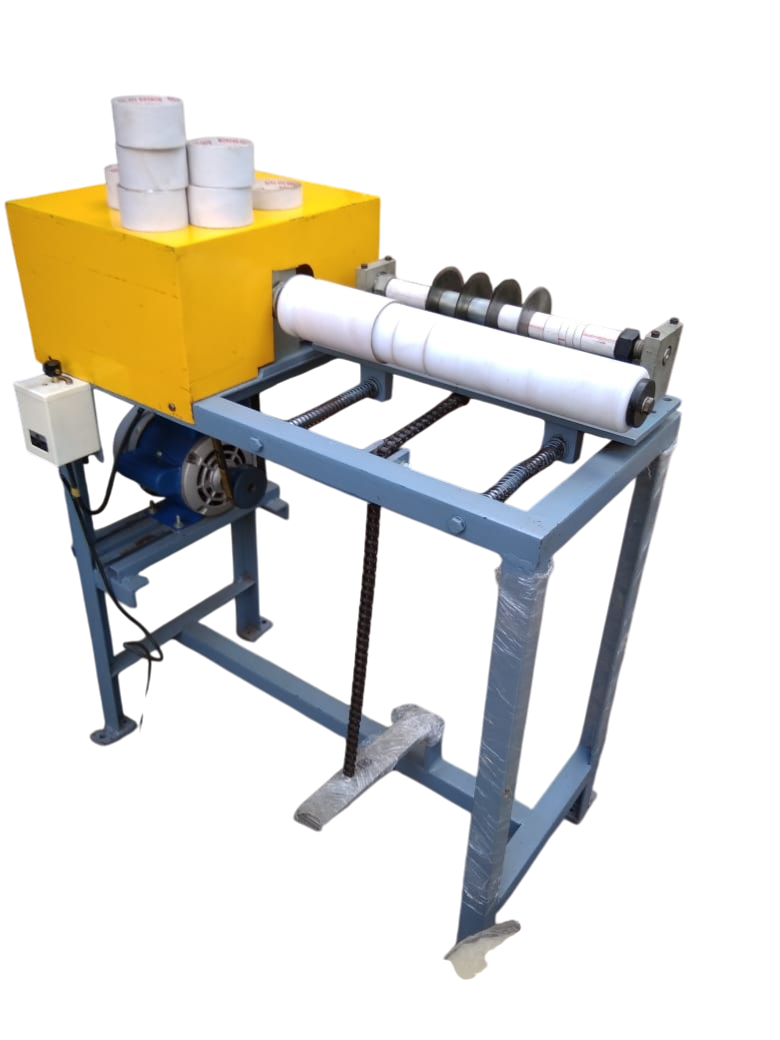

Our versatile Core Cutting Machine is the workhorse of any general converting facility. Unlike specialized tape core cutters, this machine is designed to be highly adaptable, featuring quickly interchangeable nylon mandrels to accommodate a vast array of core sizes, from standard 76mm (3-inch) up to 152mm (6-inch) industrial tubes. Utilizing a single rotary blade mechanism, it easily slices through thick cardboard and PVC cores without generating dust, providing perfect, square edges for rewinding.
High-End Features
Heavy-duty single circular slicing blade
Interchangeable nylon mandrels for various core diameters
Adjustable length measurement bar
Manual or pneumatic plunge mechanism options
Enclosed blade guard for operator safety
Minimal maintenance direct-drive motor
Technical Specifications
| Core Dia Supported | 25mm to 152mm (1 inch to 6 inch) |
| Wall Thickness | Up to 15mm Cardboard/PVC |
| Min Cut Length | 10mm |
| Blade Type | Circular Bevel Rotary Knife |
| Operation | Pneumatic or Manual Lever |
| Power | 380V, 3 Phase |
