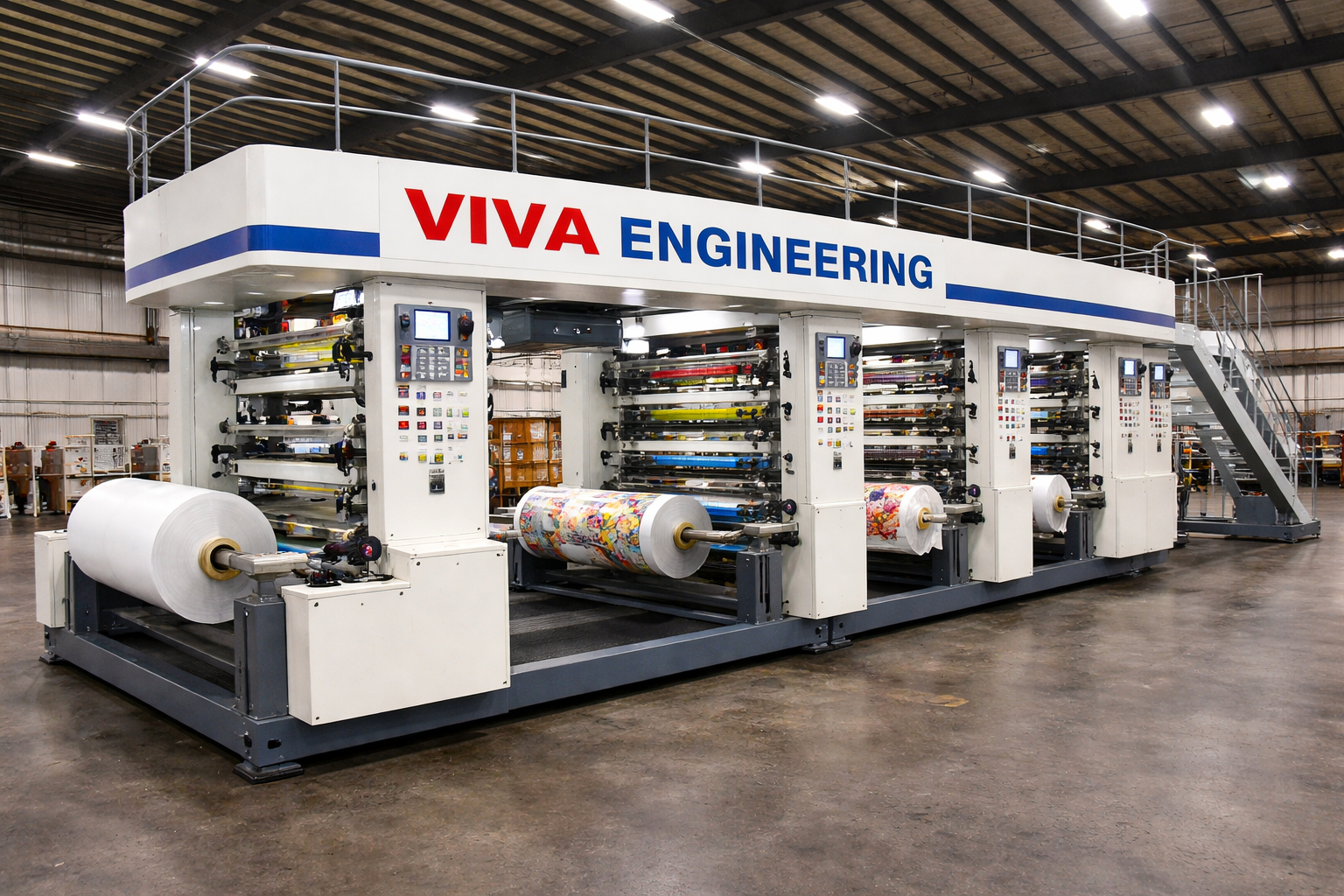

Flexographic Printing machine
Versatile, Eco-Friendly Flexo Printing Press
Standard Price
Contact for Quote
Availability
In Stock
Lead Time
4-6 Weeks
Description
Designed for sustainability and versatility, the VIVA Flexographic Printing Machine is the premier choice for printing on paper bags, corrugated boards, woven sacks, and breathable films. Utilizing photopolymer plates and laser-engraved ceramic anilox rollers, this machine provides precise ink metering for both solvent-based and eco-friendly water-based inks. Available in both Stack and Central Impression (CI) configurations, it is highly favored by businesses looking to transition away from gravure cylinders to more cost-effective flexo prepress processes.
High-End Features
Laser-engraved ceramic anilox rollers with enclosed chamber doctor blades
Stack type or Central Impression (CI) drum architecture
Hydraulic plate cylinder throw-off during machine stop
360-degree motorized planetary registration adjustment
IR and powerful hot air combination drying systems
Compatible with water-based & solvent-based inks
Inline slitting or die-cutting options available
Technical Specifications
| Configuration | Stack Type / CI Drum |
| Colors Available | 2 to 8 Colors |
| Web Width | 600mm to 1500mm |
| Print Speed | 100 to 200 m/min |
| Anilox | Ceramic coated (LPI configurable) |
| Ink System | Enclosed Chamber Doctor Blade |
| Drying | Infrared (IR) + Hot Air Blower |
| Plate Thickness | 1.14mm to 2.84mm |
