4. Aluminium Foil Processing Machines

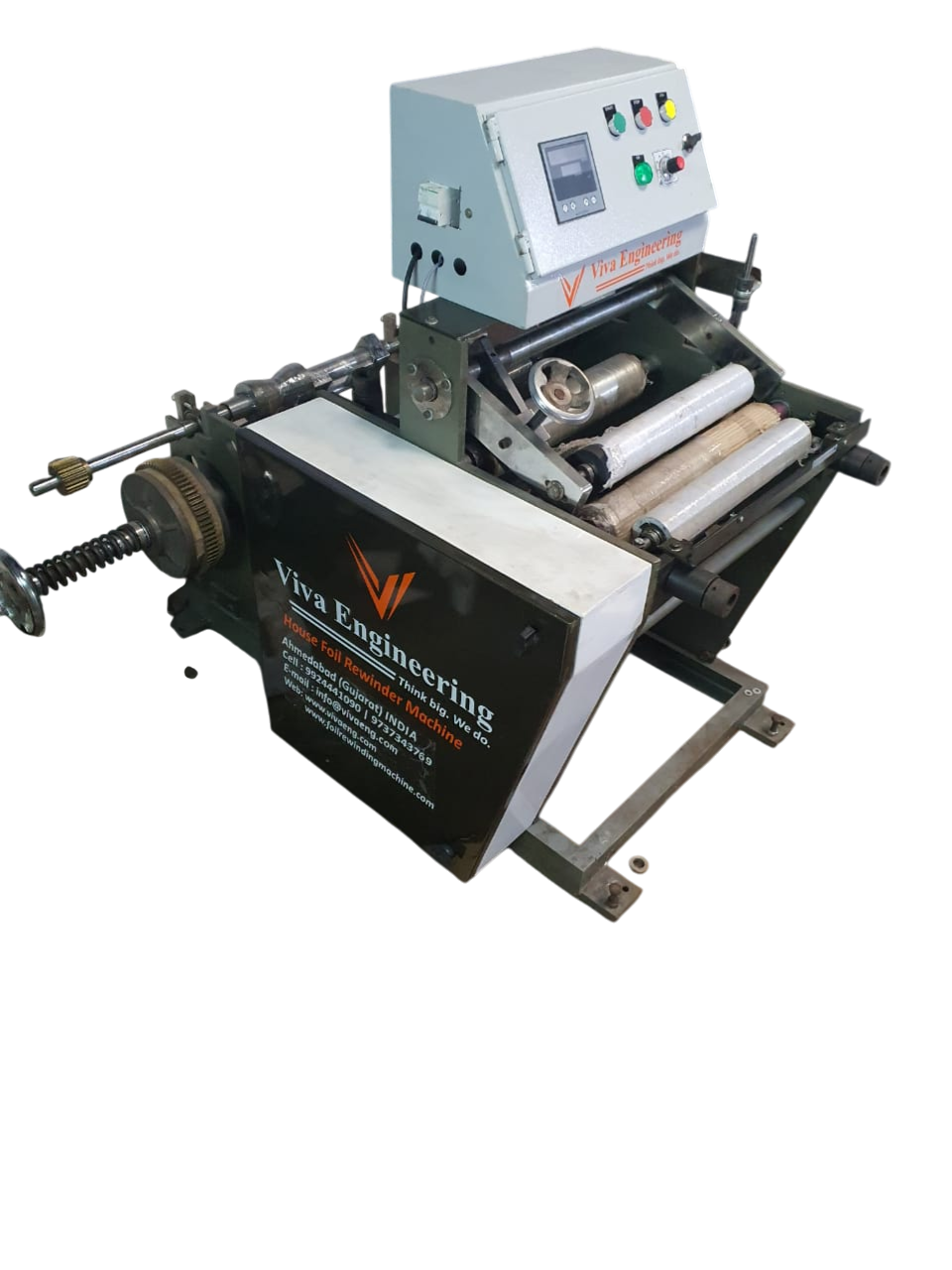

Aluminium Foil Rewinding machine
Wrinkle-Free Foil Rewinding for Packaging
Standard Price
Contact for Quote
Availability
In Stock
Lead Time
4-6 Weeks
Description
The Aluminium Foil Rewinding Machine converts large industrial jumbo rolls into consumer-sized household rolls or catering rolls used in kitchens, restaurants, and pharmaceutical blister packaging. Because aluminium foil has zero elasticity and is prone to creasing, this machine is equipped with ultra-precision machined rollers, specialized spreader bows, and a zero-friction web path. The fully automatic turret mechanism provides continuous operation by automatically cutting and gluing the foil onto fresh cores without stopping the machine.
High-End Features
Fully automatic turret rewinding (continuous operation)
Hot-melt glue application for core adherence and tail sealing
Precision knife cutting system for clean foil edges
Automatic core loading from an integrated hopper
Micro-computer length control for exact roll sizing
Anti-static active bars and dust enclosure
Tension isolation zones to prevent web snapping
Technical Specifications
| Foil Thickness | 9 to 25 Microns |
| Mother Roll Width | Max 450mm |
| Mother Roll Dia | Max 600mm |
| Rewind Roll Dia | Max 150mm |
| Production Speed | Up to 400 m/min |
| Operation | Fully Automatic Turret |
| Core Transfer | Auto-Glue and Cut |
