1. Slitting Rewinding Applications

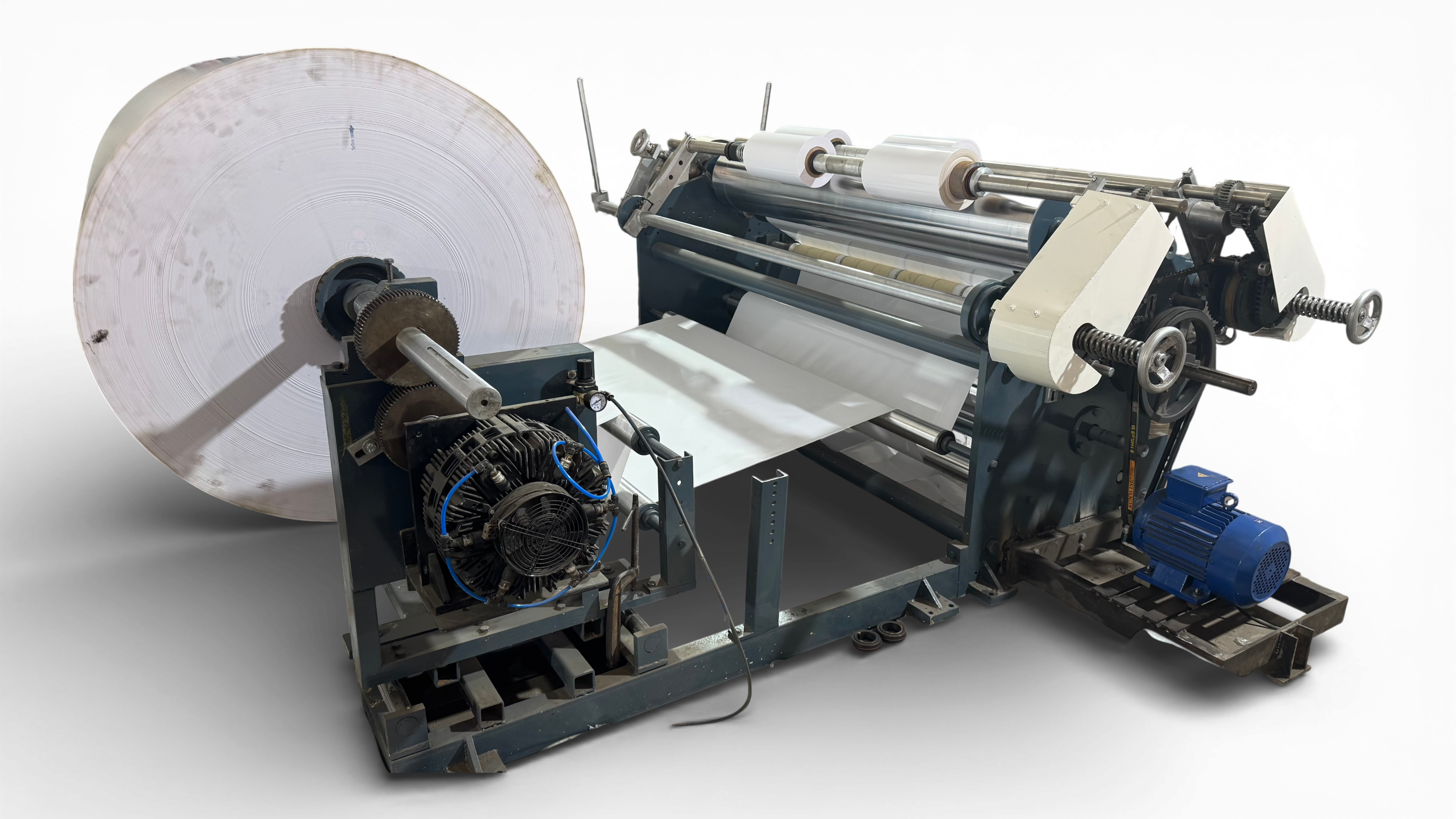

Paper slitting Rewinding machine
High-Speed Precision Slitting for Paper Industries
Standard Price
Request Quote
Availability
In Stock
Lead Time
4-6 Weeks
Description
The VIVA Engineering Paper Slitting Rewinding Machine is a heavy-duty, high-performance solution designed specifically for the paper converting industry. Engineered to handle a wide range of materials from lightweight specialty papers to heavy kraft and board, this machine delivers perfectly wound rolls with clean, dust-free edges. It features a robust vibration-free frame, advanced PLC-based tension control, and precision circular knife slitting. The automated systems minimize operator intervention leading to reduced downtime and increased daily output.
High-End Features
Heavy-duty cast iron frame for vibration-free operation
Advanced PLC with touch screen HMI for easy parameter setting
Automatic web tension control via load cells
Pneumatic core braking and electromagnetic clutch rewinding
Digital edge and line guiding system (EPC/LPC)
Shaftless unwinding stand for heavy jumbo rolls
Slit width starting from 25mm to maximum machine width
Technical Specifications
| {"Web Width" | "1000mm to 2500mm" |
| "Unwind Diameter" | "Up to 1500mm" |
| "Rewind Diameter" | "Up to 1000mm" |
| "Operating Speed" | "Up to 300 m/min" |
| "Slitting Mechanism" | "Circular Rotary Knives" |
| "Power Supply" | "380/415V |
| "Control System" | "PLC with Touch Screen HMI" |
| "Tension Control" | "Automatic Closed Loop System"} |
